Truck Monitoring System:

Installation Diagram of Truck Monitoring System:

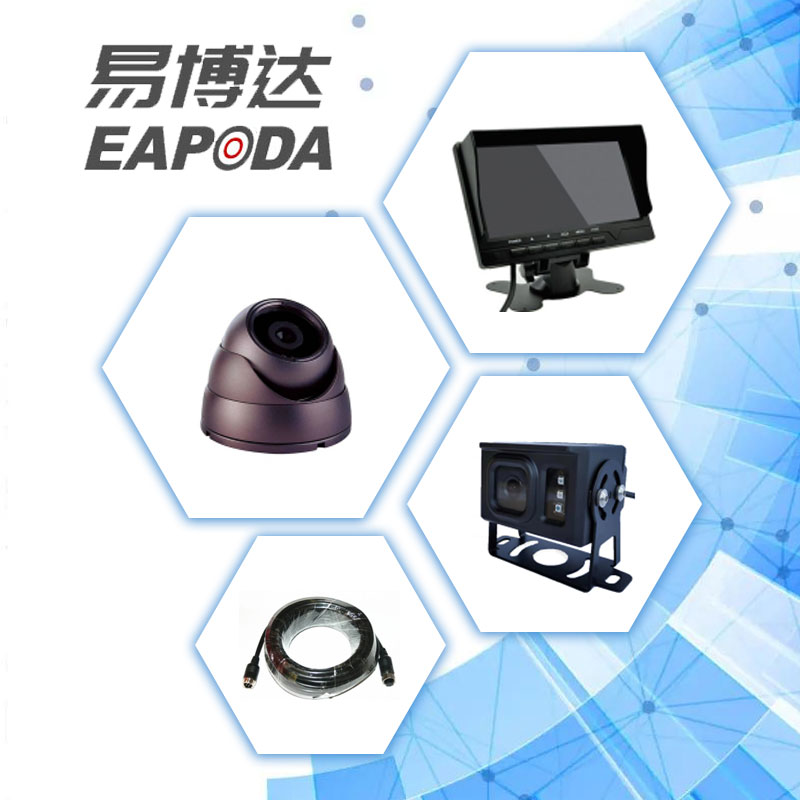

Product Components of Truck Monitoring System:

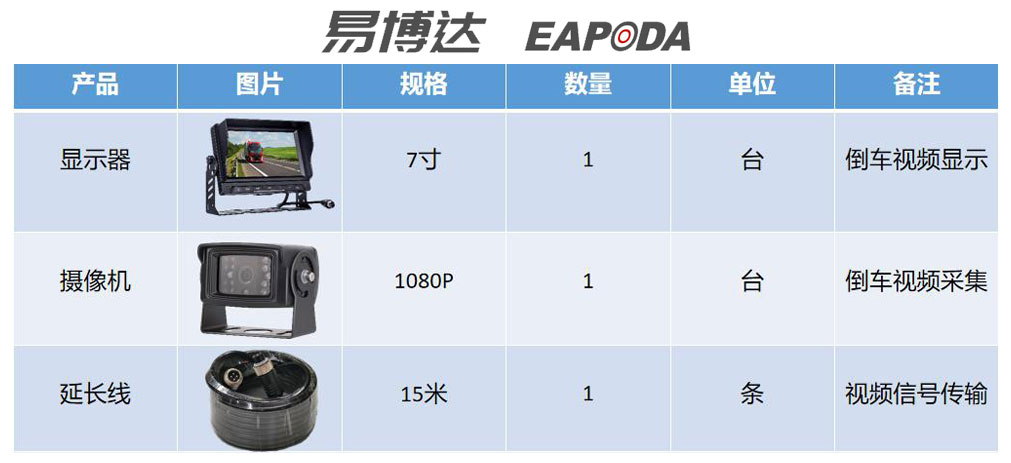

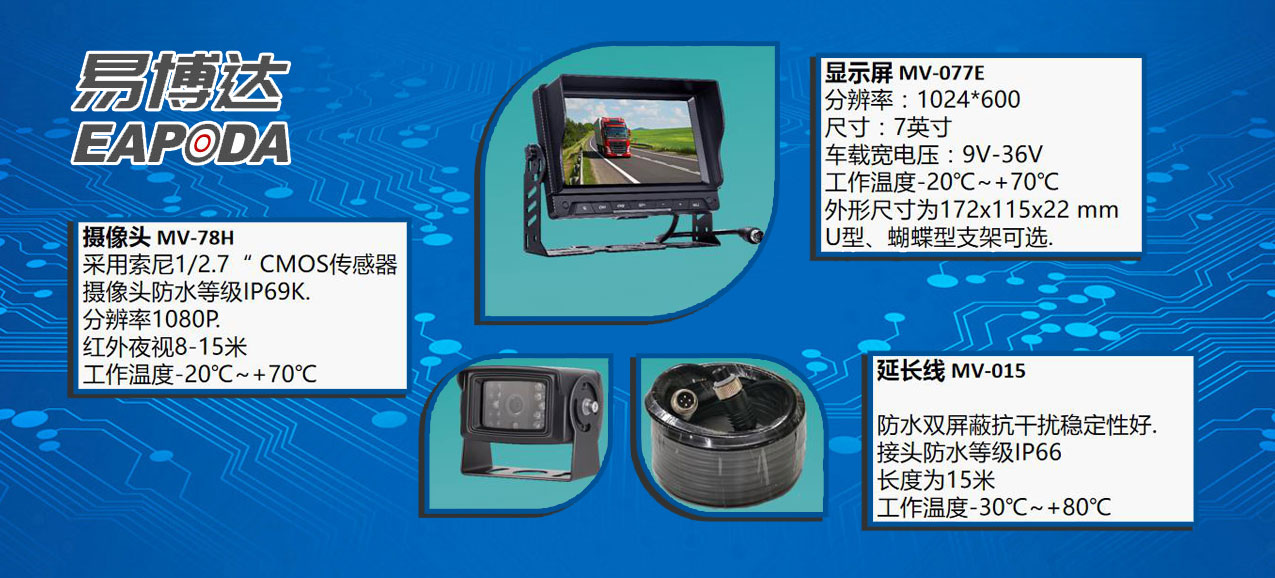

# Display Screen EA-0701X3 - Dimension Specification: 7 inches - Resolution: 1024*600 - Power Input: 9-36V wide voltage - Bracket: Standard butterfly bracket (U-shaped bracket optional) # Front-view Camera EA-731C1 (without light) - Specification: AHD coaxial high-definition 1080P - Voltage: DC12V - Lens: 2.8mm # Reverse Camera EA-828C8 - Specification: AHD coaxial high-definition 1080P - Voltage: DC12V - Lens: 2.8mm - Night Vision Infrared: 10 meters - Waterproof Rating: IP68 # Extension Cable EA-XC10P - Specification: Twisted shielded anti-interference coaxial high-definition extension cable - Interface: Standard aviation connector - Length: 10 meters (customizable length) # Configuration List of Truck Monitoring System:

# Applicable Scenarios: Widely used in box trucks, logistics vehicles, vans, cold chain trucks, container trucks and similar models for driver driving assistance and monitoring. The above is the introduction of E-Boda Truck Monitoring System. For more information, please contact us at: 13510706870.
